1.Product Overview

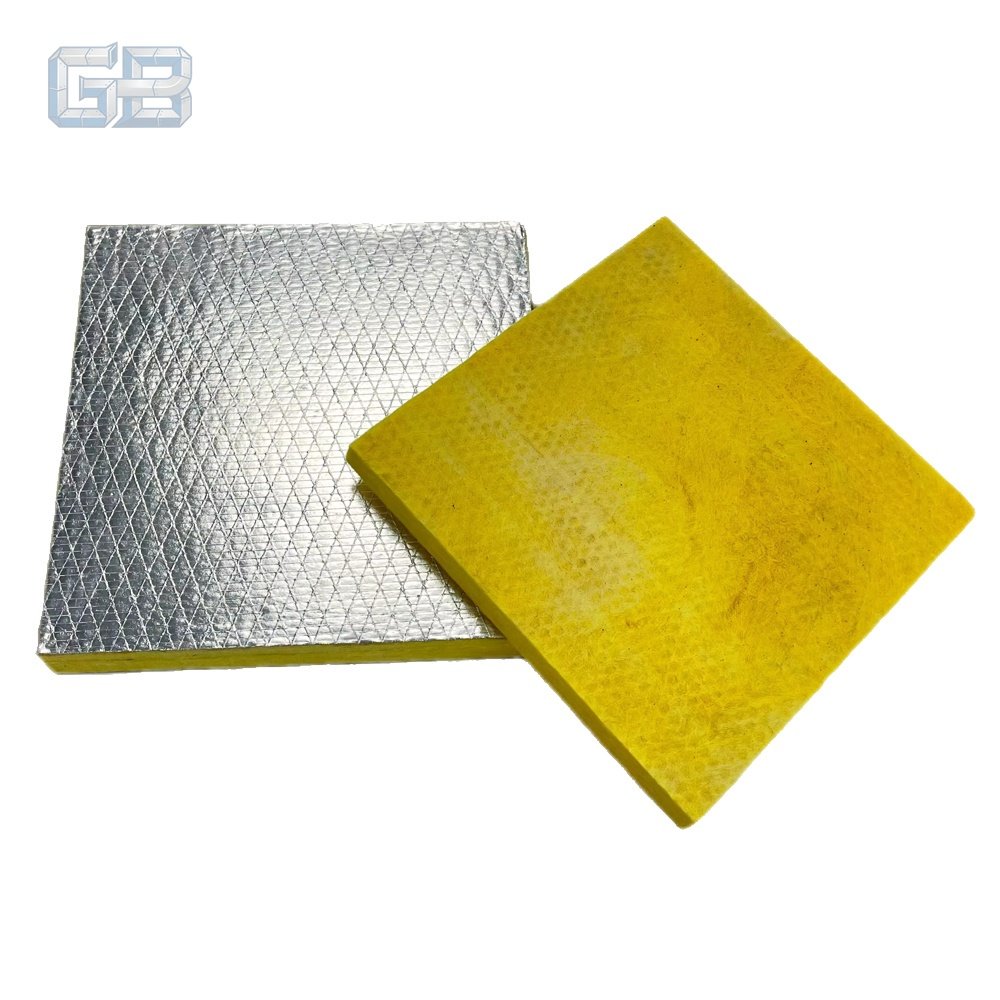

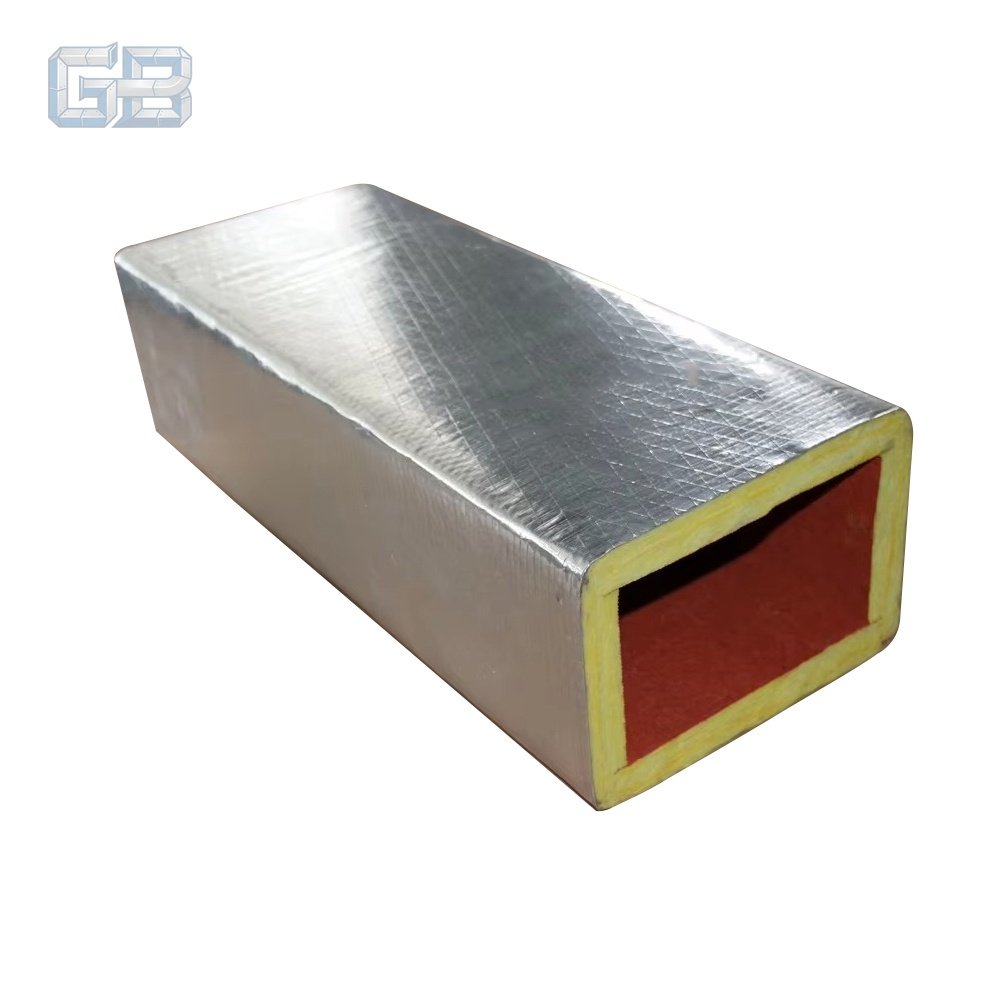

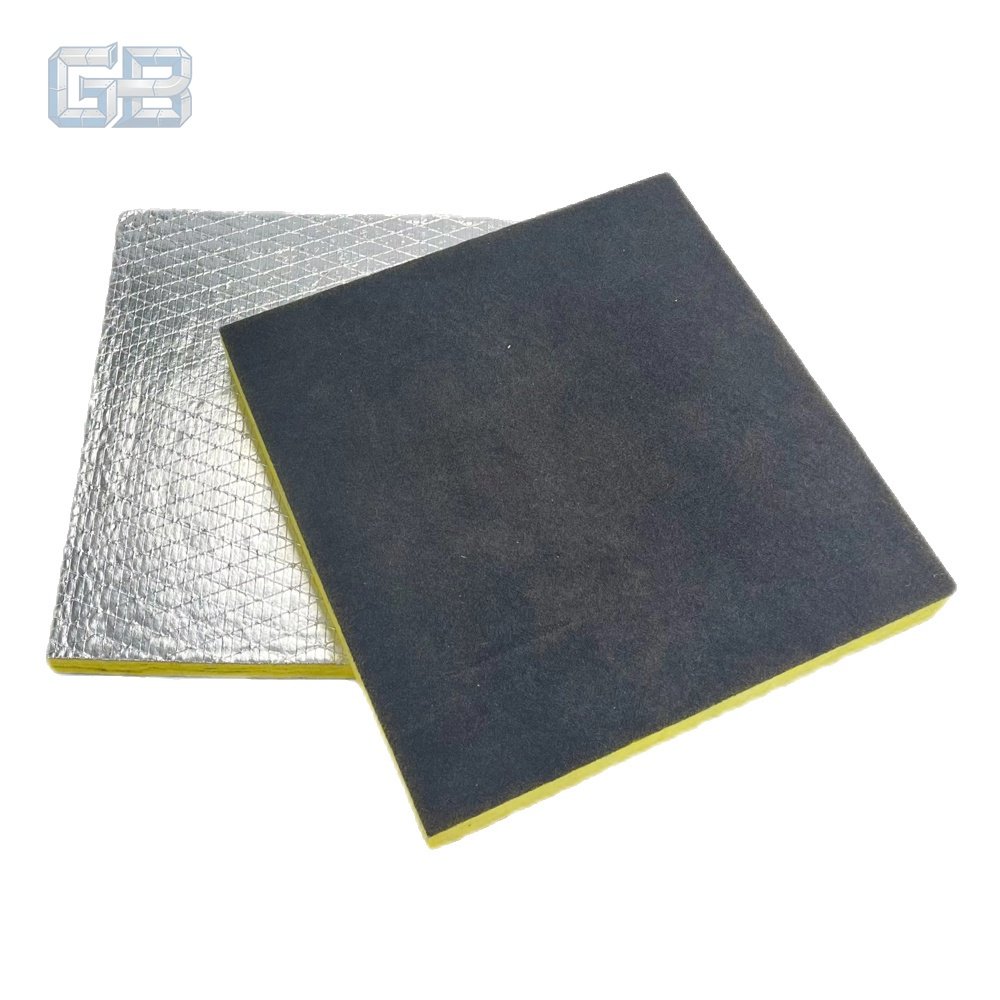

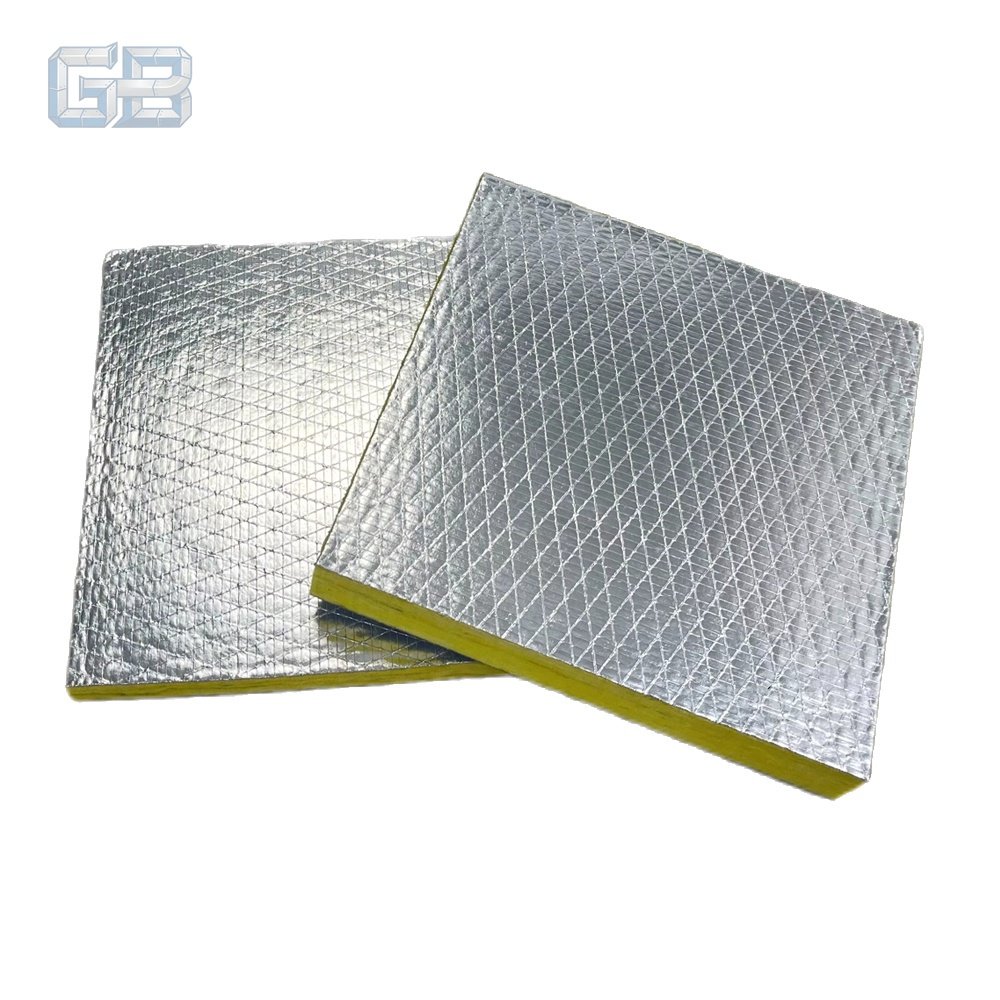

Our fiberglass duct board is a rigid, resin-bonded fibrous glass panel engineered exclusively for fabricating rectangular HVAC ductwork. It integrates duct structure, thermal insulation, and sound absorption into a single material, delivering the most cost-effective solution for commercial, residential, and industrial HVAC systems.

Available in 1", 1.5", and 2" thicknesses with R-values ranging from 4.3 to 8.7, our duct boards comply with all major international standards including UL 181, ASTM C612, and CE EN 13162.

2.Key Technical Features

Superior Thermal Performance

• Thermal conductivity: 0.23 Btu·in/hr·ft²·°F @ 75°F

• R-value: 1"=R4.3, 1.5"=R6.5, 2"=R8.7

• Operating temperature range: -32°F to 250°F (-35°C to 121°C)

Exceptional Fire Safety

• UL 723 certified: Flame spread index ≤25, smoke developed index ≤50

• UL 181 certified: Flame penetration time ≥30 minutes

• Complies with NFPA 90A and international building code requirements

Health & Environmental Protection

• Formaldehyde-free ECOSE bonding technology

• Mold and bacteria resistant (tested per ASTM G21 and G22)

• Low VOC emissions, meets indoor air quality standards

High Strength & Durability

• 3lb/ft³ high-density structure, compressive strength ≥10psi

• Reinforced FSK aluminum foil facing, tear and puncture resistant

• Dual-density tongue-and-groove joints for secure, distortion-free connections

Easy Installation

• Fabricable on-site or in-shop with simple hand tools

• Pre-scored V-groove design for fast, accurate folding

• No welding required, seals with tape and sealant only
