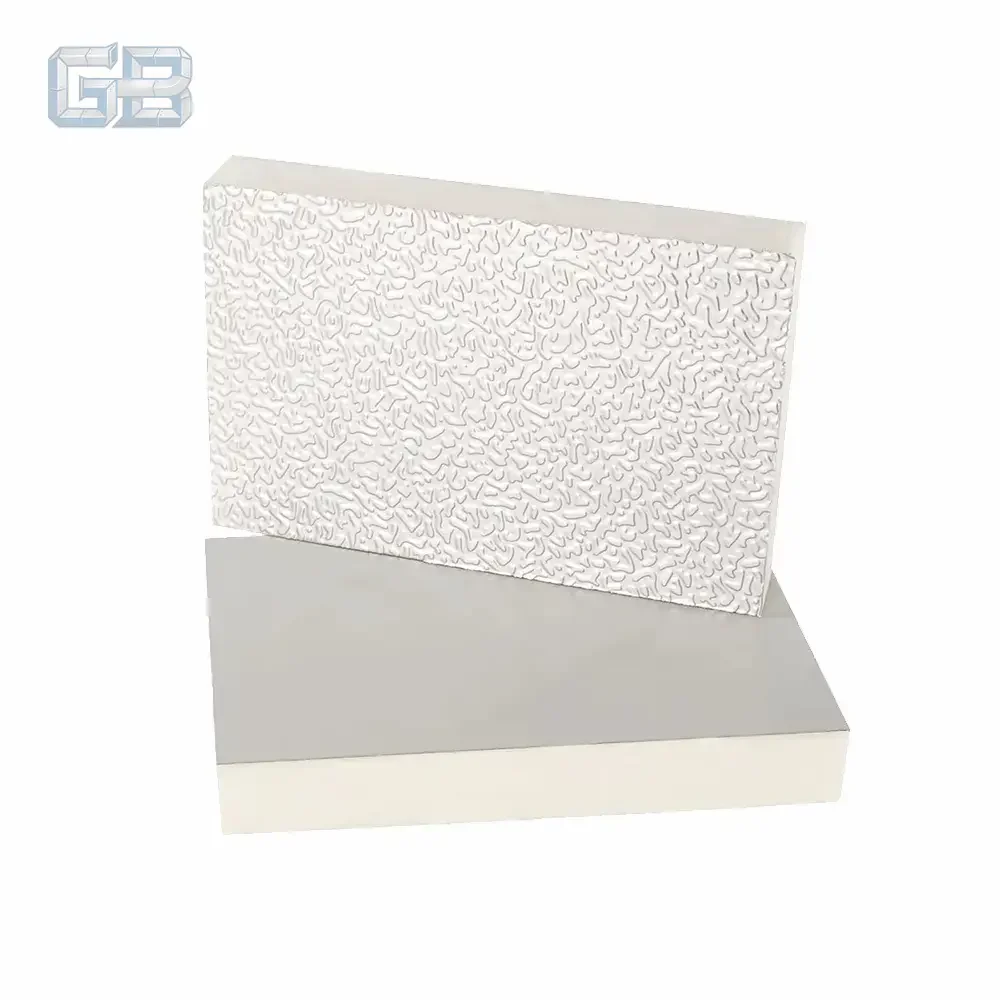

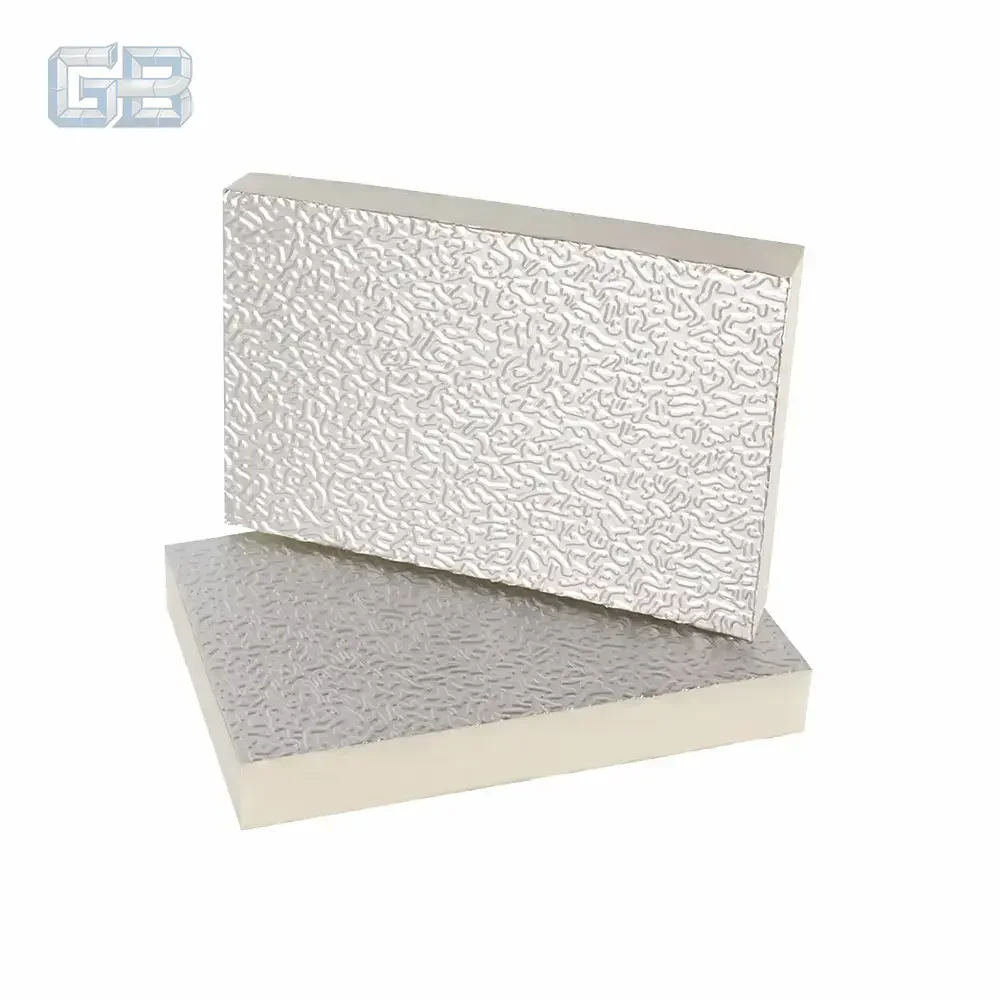

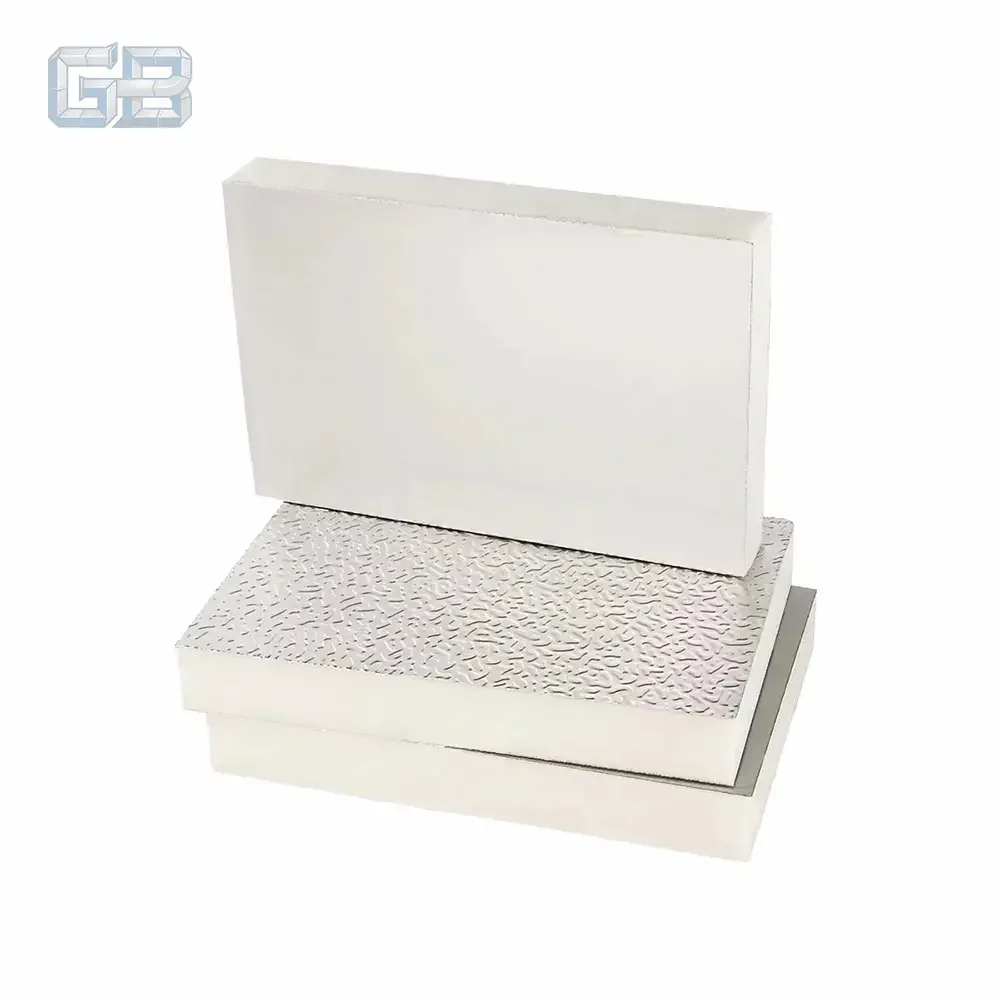

Our PIR (Polyisocyanurate) duct boards provide superior thermal insulation, excellent fire resistance and fast installation, significantly reducing your project's construction time and long-term operating costs.
Available in standard and custom sizes, compliant with CE, ASTM E84 and FM 4880 standards, trusted by 500+ HVAC contractors worldwide.
✅ Thermal Conductivity ≤0.022 W/(m·K)
✅ Class A Fire Rated
✅ 50+ Years Service Life
✅ Fast On-Site Fabrication
In Stock: Standard sizes ship within 7 days
MOQ: 100 sheets
Certification: CE, ISO 9001, RoHS

Get in touch

Email:info@gbduct.com
WhatsApp:+86 188 6166 0266

24/7 Online Support

Get Your Free Quote Now
Core Advantages

Industry-Leading Thermal Performance

• Closed-cell structure

• Thermal conductivity down to 0.022 W/(m·K)

• 30% higher efficiency than rock wool

• 15% better performance than EPS panels

• Greatly cuts HVAC energy costs



Superior Fire Safety

• Flame-retardant PIR foam material

• ASTM E84 Class A fire rated

• EN 13501-1 B-s1,d0 certified

• Optional FM approval available

• Ideal for high-risk commercial & industrial projects



50% Faster Installation

• Integrated pre-insulated design

• No extra insulation or cladding needed

• Easy on-site cutting & assembly

• Simple tools only required

• Up to 50% labor cost saved



Long-Lasting Durability

• Closed-cell foam resists moisture & mold

• Aluminum foil facing anti-corrosion

• Stable performance without degradation

• Over 50 years long service life

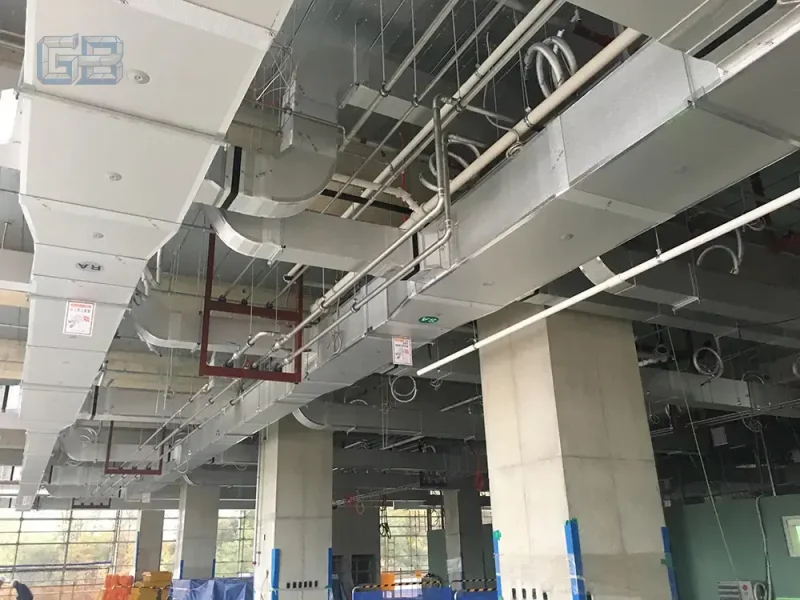

Phenolic Foam Duct Board1

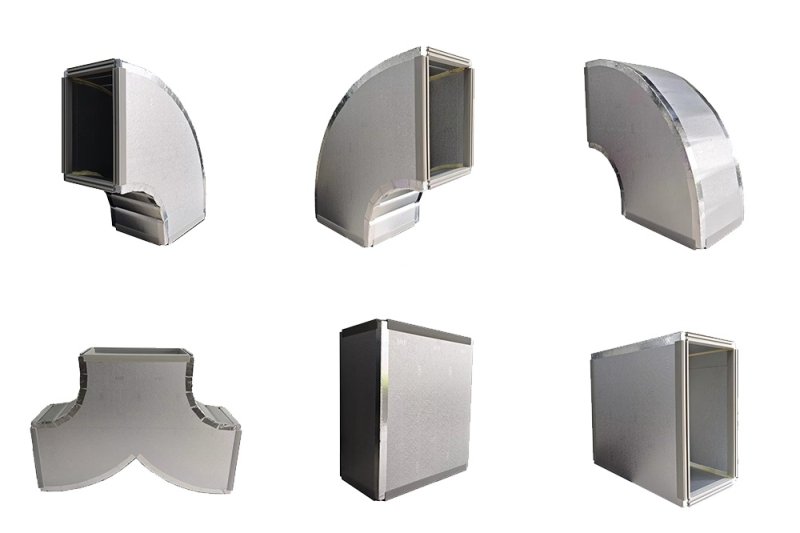

PIR Duct Board4
Technical Specification Sheet
Item Unit Specifications
Panel Structure   PIR Foam Duct/0.06 or 0.08mm Alu.Foil
Standard Panel Size mm 3950*1200*20 or 2900*1200*20
Panel Thickness mm 20 to 40
Alu. Foil Thickness mm 0.06 or 0.08
Foam Density kg/m3 45-55
Thermal Conductivity w/m.k 0.02
Compressing Strength MPa 0.2
Binding Strength MPa 2
Water Absorption Rate % ≤0.1
Dimension Change % 0.3
Working Temperature °C -40 to +70
Continuous Running Maximum Temperature °C ≤70
Maximum Allowable Wind Velocity m/s 12
Lifespan of PIR Air Duct years >20
Fire Safety BS 476 Part 6 & 7 / ASTM E84 Class 0/ Class A
Oxygen Index GB8624-2012 30
Air Leakage Rate % ≤2
Closed Cell Rate % >95%
CFCs and HCFCs   Free
Typical Projects
  • Alibaba Group Global Headquarters
  • ByteDance Shanghai Headquarters
  • Nanjing University
  • Shanghai Grand Theatre
  • Embassy of the United Arab Emirates in Beijing
  • The Palace Museum
GB Duct Board – Factory Tour Video

Why Choose Us

Rich Industry Experience

With over 40 years of experience in the HVAC industry, we have completed more than 10,000 projects worldwide.

Strong Production Capacity

We own 10 modern automatic production lines with an annual output capacity of 300,000 square meters, guaranteeing stable quality and on-time delivery even for bulk orders.

Professional Technical Team

Our experienced engineering team provides one-stop customized solutions and full-process professional technical support for all your project demands.

Competitive Factory Price

As a direct manufacturer without middlemen markup, we offer genuine factory direct prices, helping you save up to 20% cost compared with trading companies.

Comprehensive After-sales Service

We provide complete after-sales support, including on-site installation guidance, professional technical training and efficient problem solving anytime.
