Introduction to Aluminum Foil Phenolic Composite Ducts

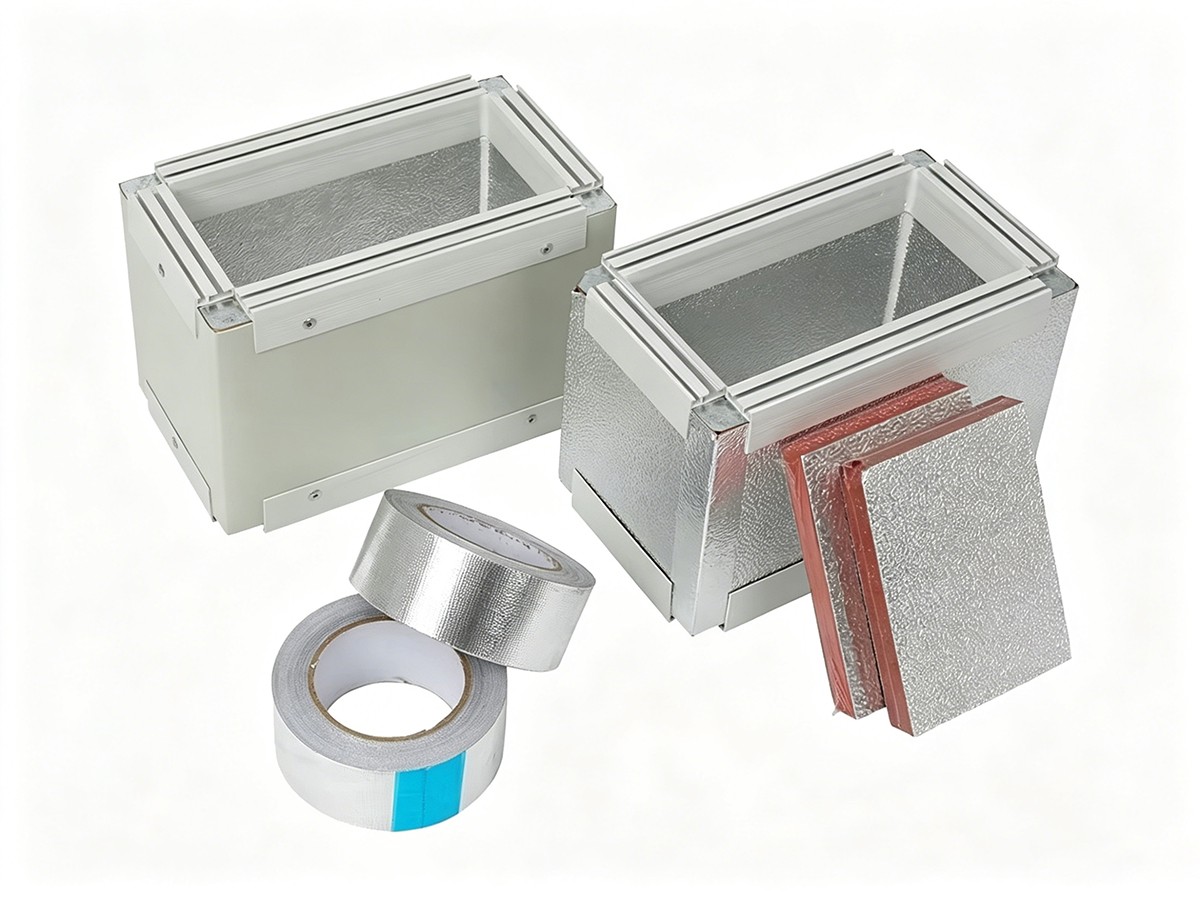

Aluminum foil phenolic composite ducts have become the preferred choice for modern ventilation and air conditioning systems in both general industrial and civil buildings. These high-performance ducts consist of two layers of aluminum foil laminated onto a rigid phenolic foam insulation core, offering exceptional thermal efficiency, fire resistance, and durability compared to traditional galvanized steel ducts.

At GB DUCT, we have over 40 years of experience in manufacturing premium phenolic composite duct boards and providing comprehensive solutions for HVAC and fire smoke exhaust systems. In this technical guide, we walk you through the standard fabrication process of aluminum foil phenolic composite rectangular ducts.

Step-by-Step Fabrication Process

1. Rectangular Straight Duct Fabrication

Rectangular ducts are the most common type used in HVAC systems. All duct dimensions specified in engineering drawings refer to the internal dimensions of the finished duct.

Precision Cutting: Each duct panel edge must be cut at a precise 45-degree bevel angle to ensure tight, airtight joints when assembled.

Layout and Marking: Using a steel ruler or tape measure, mark the calculated dimensions on the phenolic duct board. Use a square aluminum straightedge and marker to draw cutting lines, V-groove lines, and 45-degree bevel lines with absolute accuracy.

Assembly: Four precisely cut panels are joined together to form a complete rectangular duct section, ensuring all corners are perfectly square and joints are properly sealed.

2. T-Shaped Rectangular Duct Fabrication

T-shaped ducts are used to branch airflow from a main duct to a secondary duct. They consist of two rectangular straight duct sections.

Individual Layout: Fabricate both the main duct and branch duct sections using the same rectangular straight duct layout method described above.

Precision Opening: Cut a precisely sized opening in the main duct at the designated position. The opening dimensions must exactly match the corresponding side length of the branch duct.

Marking and Cutting: Use a steel tape measure, square aluminum straightedge, and marker to accurately draw all cutting lines, V-groove lines, and 45-degree bevel lines on both duct sections before cutting.

3. Rectangular Elbow Fabrication

Rectangular elbows are essential for changing the direction of airflow in HVAC systems. A standard rectangular elbow typically consists of four panels.

Side Panel Template: First, create a side panel template according to the design specifications, including the required bend radius and angle.

Arc Panel Measurement: Measure the length of the curved edges on the side panel template.

Arc Panel Layout: Using the measured curved edge lengths, lay out rectangular patterns for the inner and outer arc panels.

Marking: Clearly mark all cutting lines, 45-degree bevel lines, and bending zone lines on each panel before proceeding with fabrication.

Why Choose GB DUCT Phenolic Duct Boards?

Founded in 1984, GB DUCT is a high-tech enterprise specializing in the research, development, production, processing, and sales of advanced HVAC duct solutions. Our commitment to quality and innovation has made us a trusted partner for projects worldwide.

Comprehensive Product Range: We manufacture phenolic, glass fiber, PIR, and PU composite duct boards, as well as fire & smoke exhaust composite ducts and a complete line of duct flange accessories.

State-of-the-Art Facilities: Our 100,000 square meters of standardized workshops are equipped with advanced production machinery to ensure consistent product quality.

Expert R&D Team: With nearly 200 dedicated employees and long-term strategic R&D cooperation with Tsinghua University and Beijing University of Chemical Technology, we maintain a leading domestic R&D platform for foam materials.

Technical Excellence: We engage senior professors as dedicated technical consultants, ensuring our products meet the highest international standards for performance, safety, and energy efficiency.

Conclusion

Proper fabrication of aluminum foil phenolic composite ducts is critical to the performance, energy efficiency, and longevity of any HVAC system. By following these professional fabrication techniques and using high-quality phenolic duct boards from GB DUCT, you can ensure your ventilation and air conditioning systems operate at peak efficiency for years to come.

For more information about our phenolic composite duct products or to request a quote for your next project, please contact our technical team today. We are committed to providing customized HVAC solutions that meet your specific project requirements.
