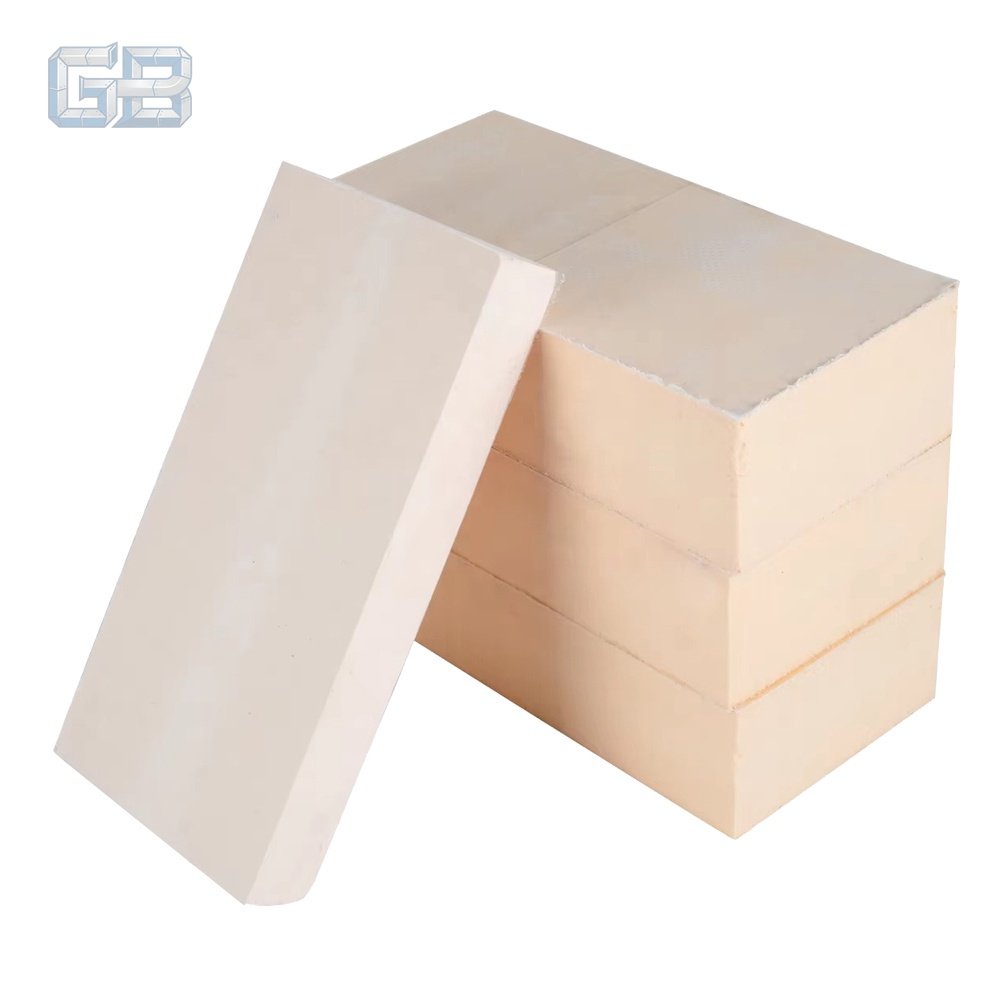

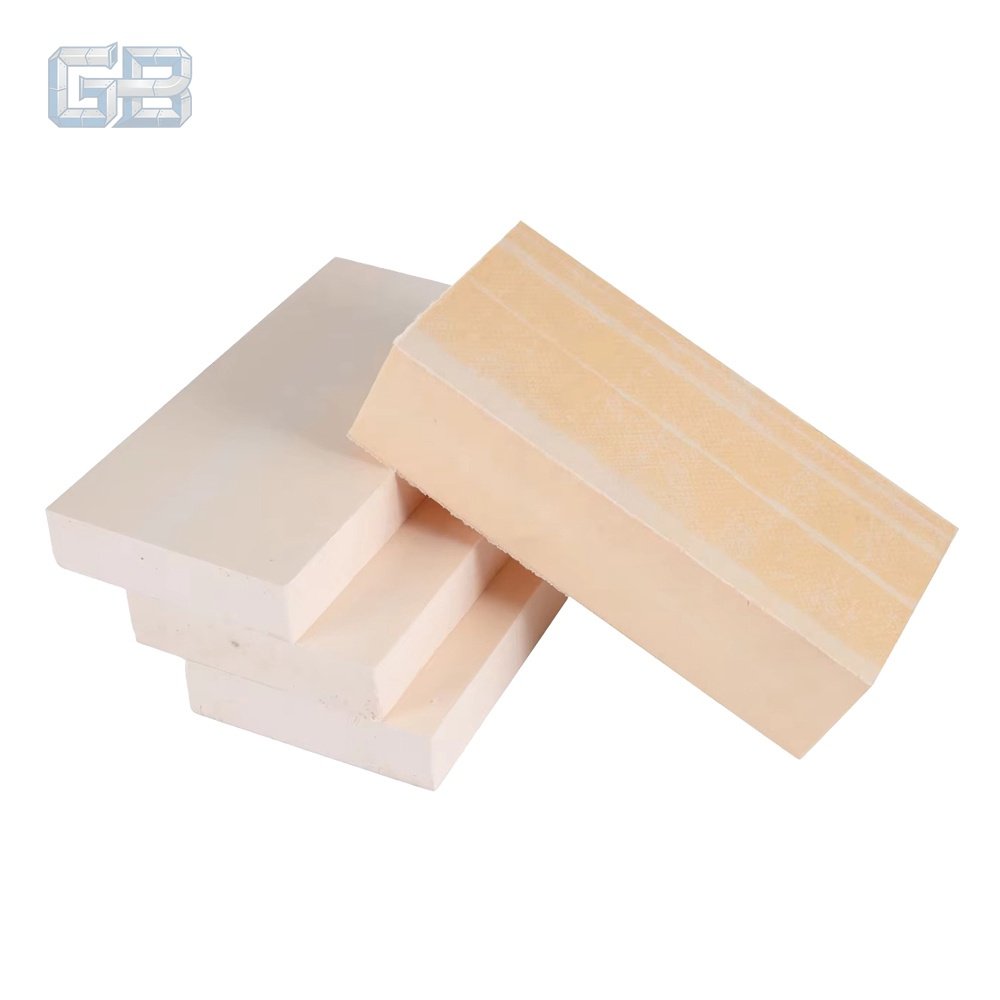

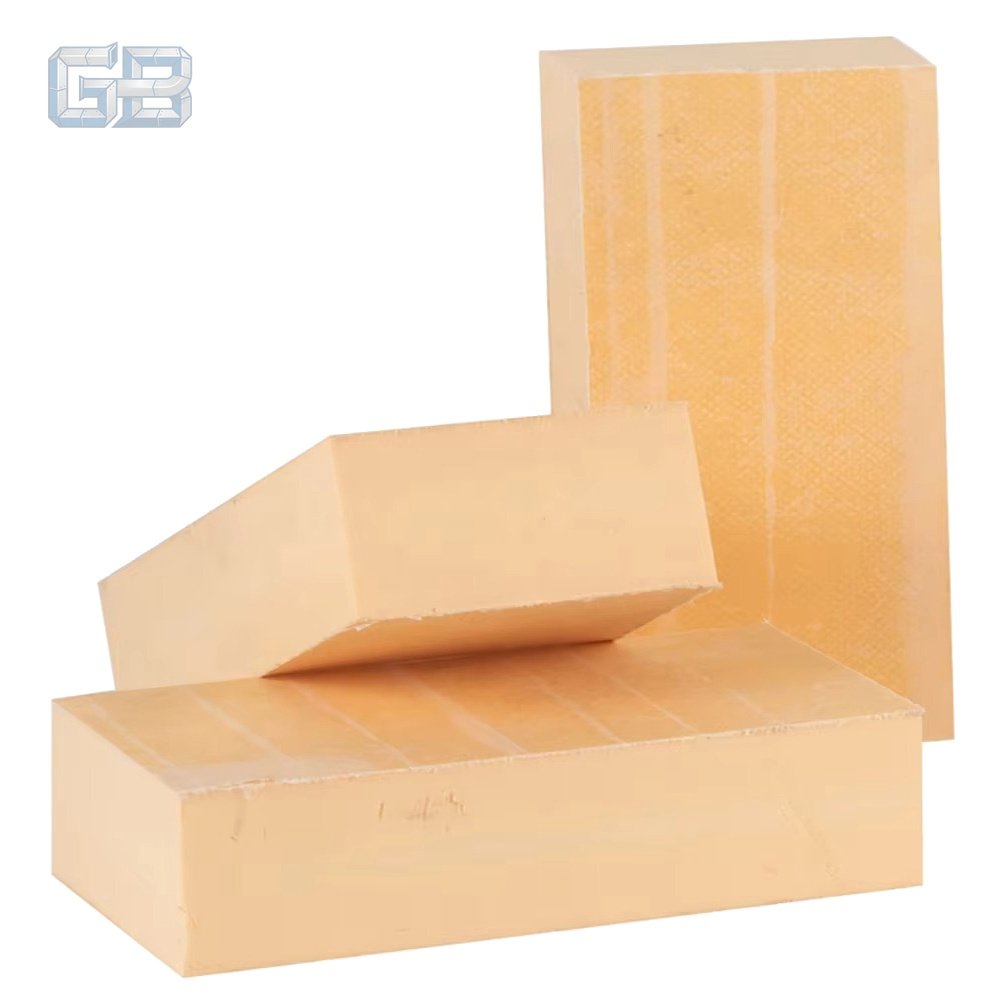

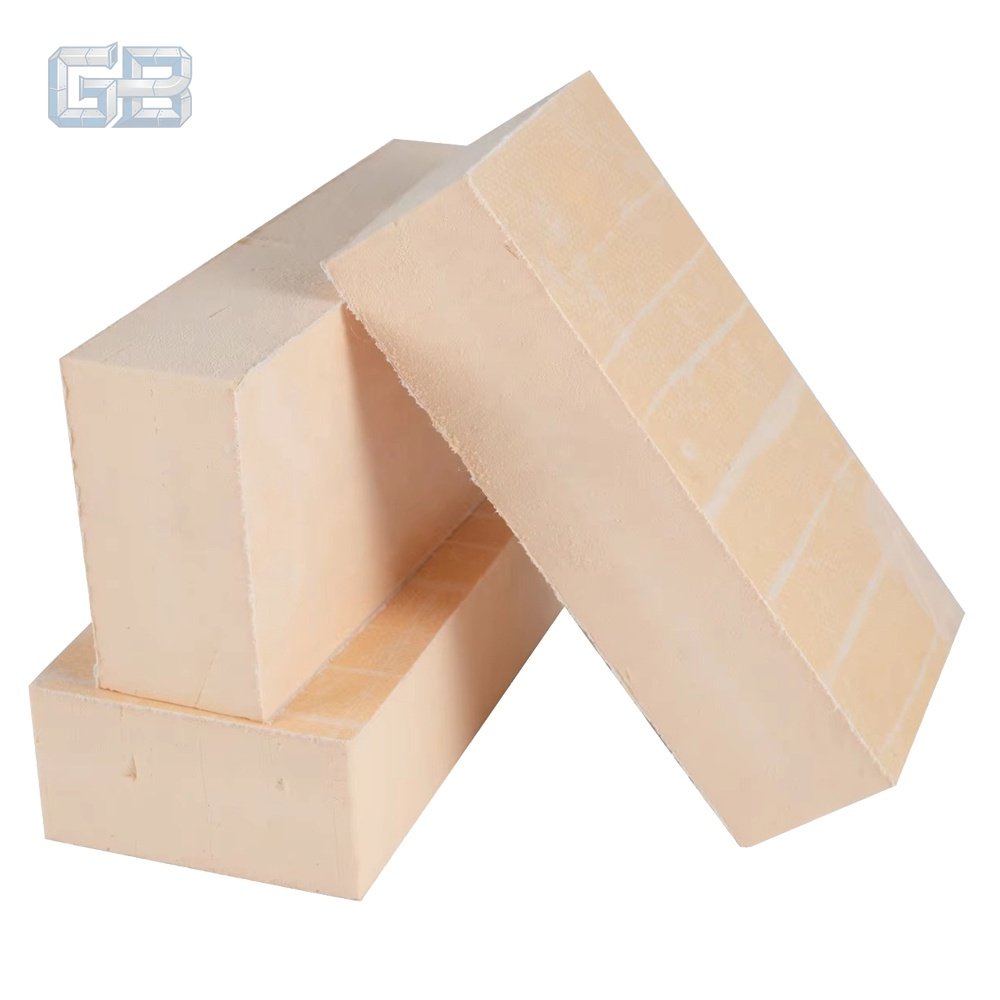

Phenolic Exterior Wall Fire Insulation Board | Class A1 Fire Rated | High Thermal Efficiency | For Commercial & Residential Buildings
Phenolic Exterior Wall Fire Insulation Board | Class A1 Fire Rated | High Thermal Efficiency | For Commercial & Residential Buildings
Non-combustible, energy-saving, and durable insulation solution that meets the strictest global fire safety standards. Reduce energy costs by up to 40% while ensuring maximum building protection.
✅ Class A1 Non-Combustible - Highest fire safety rating, zero flame spread
✅ Ultra-Low Thermal Conductivity - λ ≤ 0.022 W/(m·K) at 25°C
✅ Water & Moisture Resistant - Closed-cell structure, prevents mold growth
✅ Eco-Friendly & Formaldehyde-Free - Low VOC, recyclable material
In Stock: Standard sizes ship within 7 days
MOQ: 100 sheets
Certification: CE, ISO 9001, RoHS

Get in touch

Email:info@gbduct.com
WhatsApp:+86 188 6166 0266

24/7 Online Support

Get Your Free Quote Now
Product Overview & Core Advantages

Product Overview



Our phenolic exterior wall fire insulation board is a high-performance rigid foam insulation material made from phenolic resin. It is specifically engineered for external wall insulation systems (EWIS) and offers an unbeatable combination of fire resistance, thermal insulation, and durability. Unlike traditional insulation materials such as EPS, XPS, and rock wool, our phenolic boards achieve Class A1 fire rating without compromising on thermal performance. This makes them the ideal choice for high-rise buildings, hospitals, schools, and commercial projects where fire safety is non-negotiable.



Core Performance Advantages



1. Unmatched Fire Safety Performance

• Problem: EPS/XPS burn violently, releasing toxic fumes and molten droplets.

• Solution: EN 13501-1 Class A1 non-combustible phenolic boards.

• Benefit: Zero flame spread. Meets all global fire safety standards.

2. Superior Energy Efficiency

• Problem: Conventional insulation requires thick, space-consuming layers.

• Solution: Ultra-low thermal conductivity (≤ 0.022 W/(m·K)).

• Benefit: 30-40% thinner material. Cuts energy costs by up to 40%.

3. Exceptional Durability & Longevity

• Problem: Rock wool rots; EPS/XPS degrade in 15-30 years.

• Solution: Closed-cell structure, water absorption ≤ 1.5%.

• Benefit: 50+ year performance. No mid-life replacement needed.

4. Easy Installation & Versatility

• Problem: Heavy insulation increases labor and time costs.

• Solution: Lightweight rigid boards, cut with standard tools.

• Benefit: 30% faster installation. Works with all wall systems.

Phenolic Exterior Wall Fire Insulation Board-4
Technical Specification Sheet
Parameter Value Standard
Fire Rating Class A1 EN 13501-1
Thermal Conductivity ≤ 0.022 W/(m·K) at 25°C EN 12667
Density 40-60 kg/m³ EN 1602
Compressive Strength ≥ 150 kPa EN 826
Water Absorption ≤ 1.5% by volume EN 12087
Operating Temperature -196°C to +150°C -
Formaldehyde Emission E0 Grade (≤ 0.05 mg/m³) GB 18580-2017
Service Life ≥ 50 years -
Typical Projects

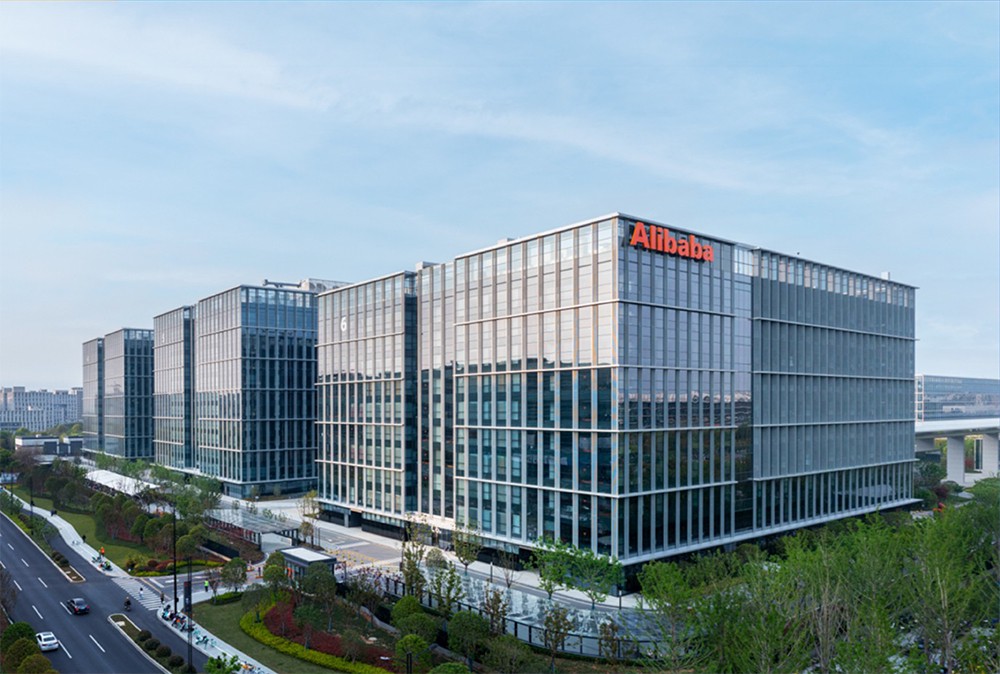

  • Alibaba Group Global Headquarters

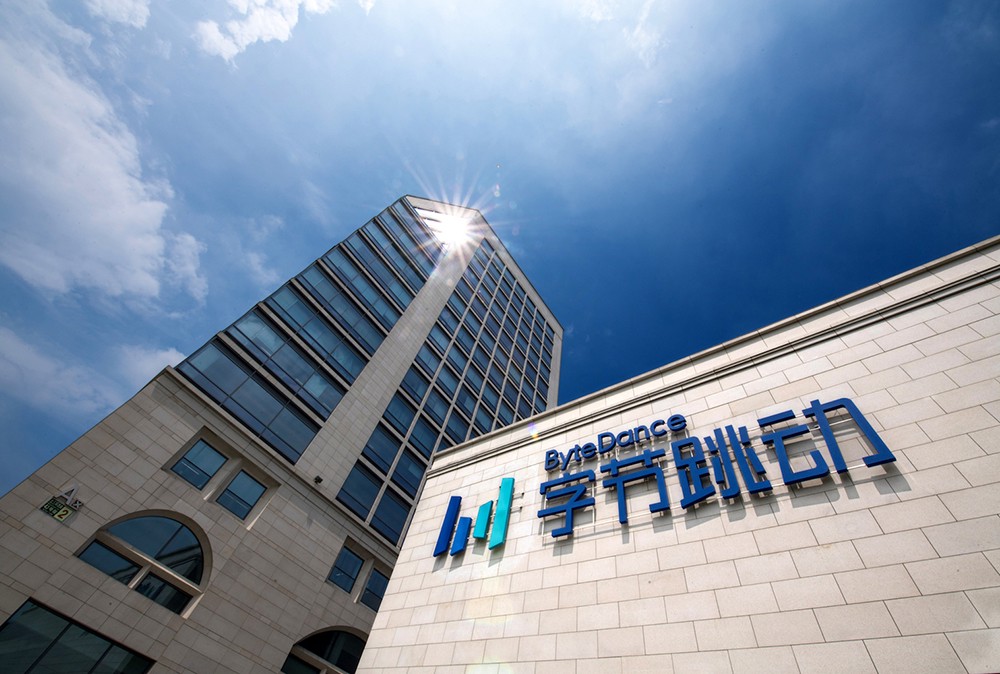

  • ByteDance Shanghai Headquarters
  • Nanjing University

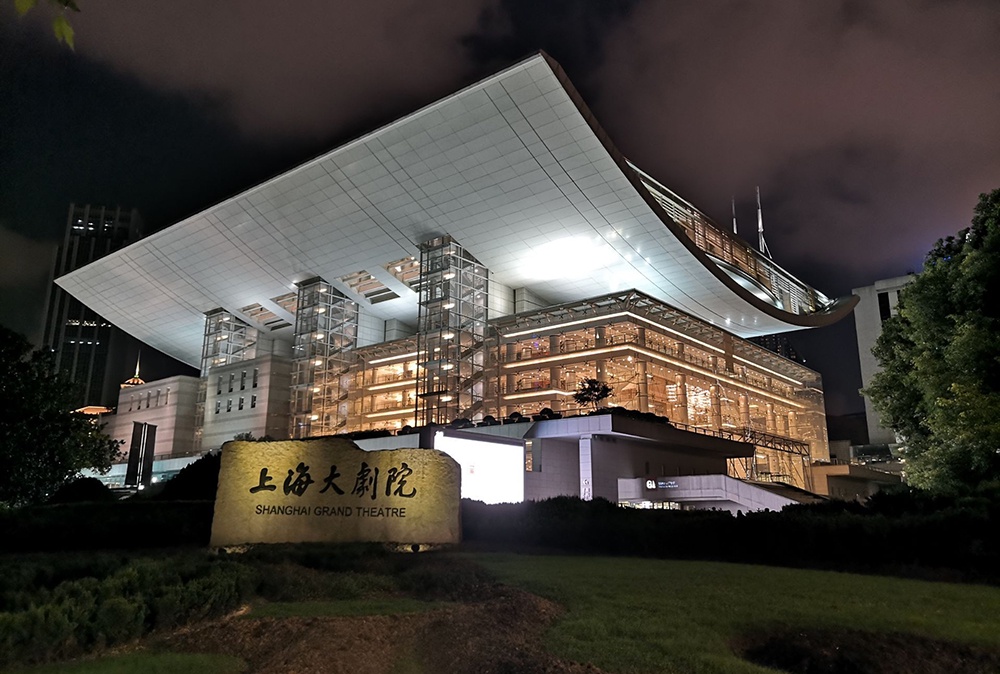

  • Shanghai Grand Theatre

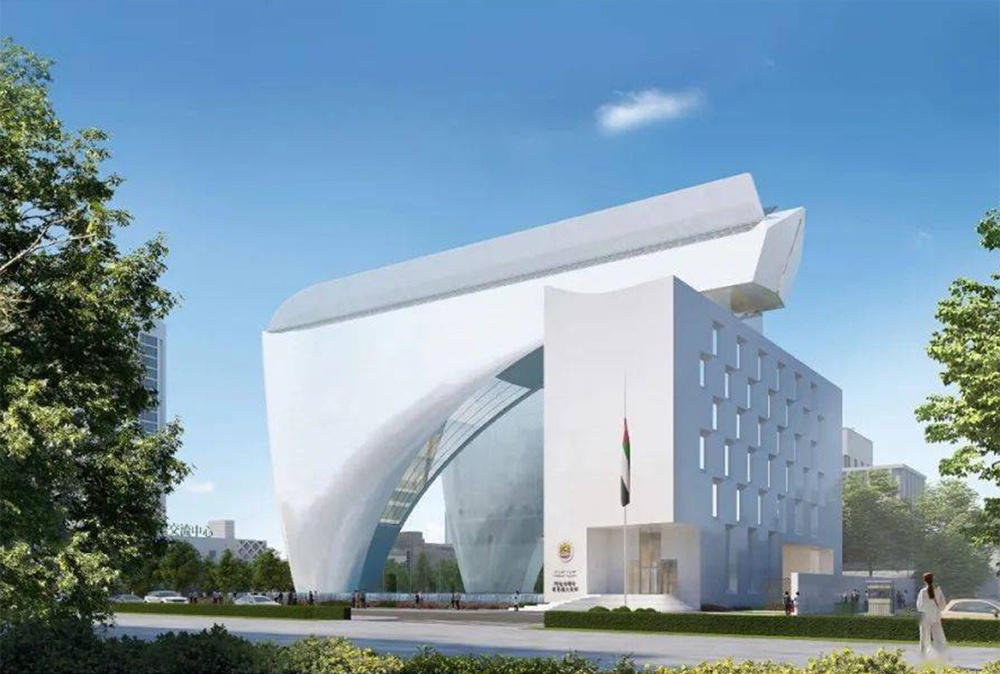

  • Embassy of the United Arab Emirates in Beijing

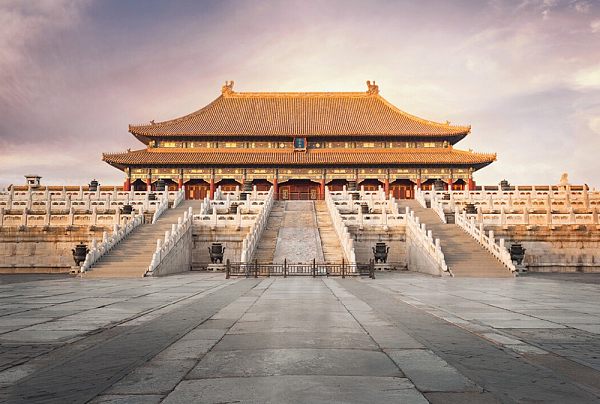

  • The Palace Museum
GB Duct Board – Factory Tour Video

Why Choose Us

Rich Industry Experience

With over 40 years of experience in the HVAC industry, we have completed more than 10,000 projects worldwide.

Strong Production Capacity

We own 10 modern automatic production lines with an annual output capacity of 300,000 square meters, guaranteeing stable quality and on-time delivery even for bulk orders.

Professional Technical Team

Our experienced engineering team provides one-stop customized solutions and full-process professional technical support for all your project demands.

Competitive Factory Price

As a direct manufacturer without middlemen markup, we offer genuine factory direct prices, helping you save up to 20% cost compared with trading companies.

Comprehensive After-sales Service

We provide complete after-sales support, including on-site installation guidance, professional technical training and efficient problem solving anytime.
