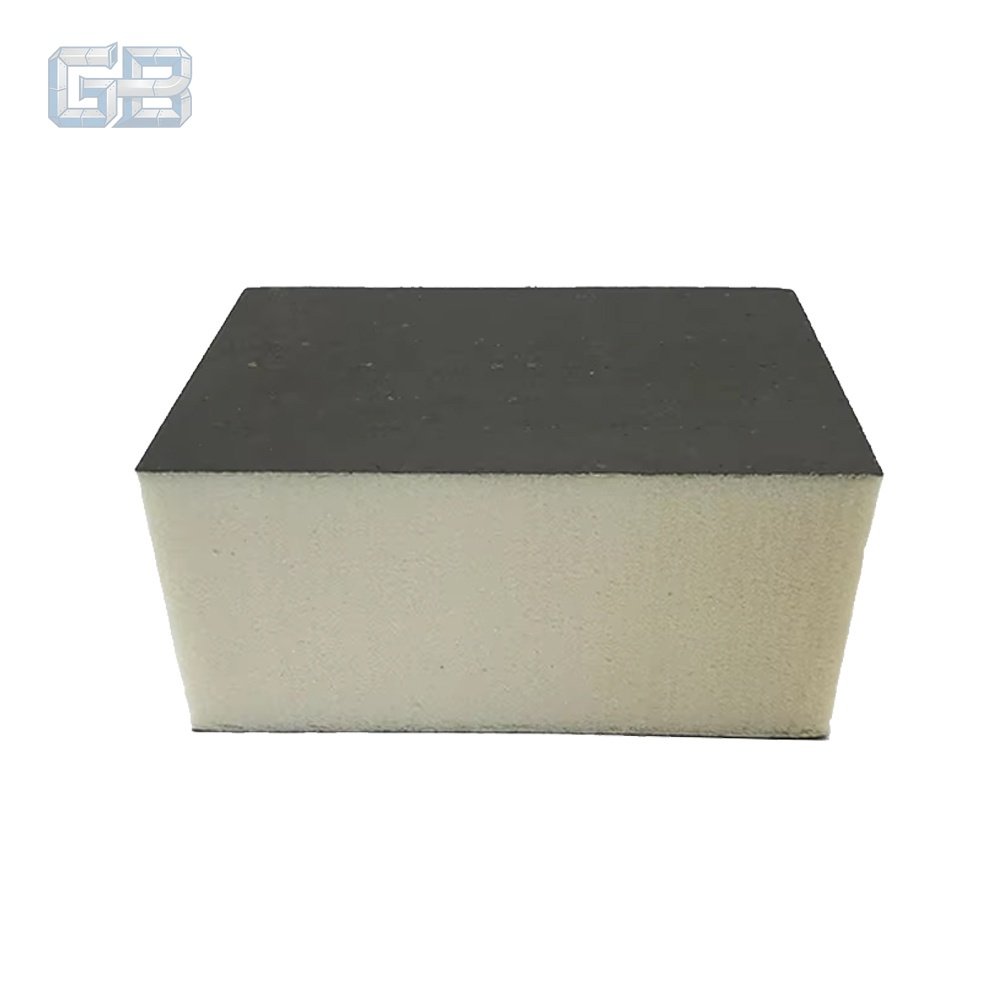

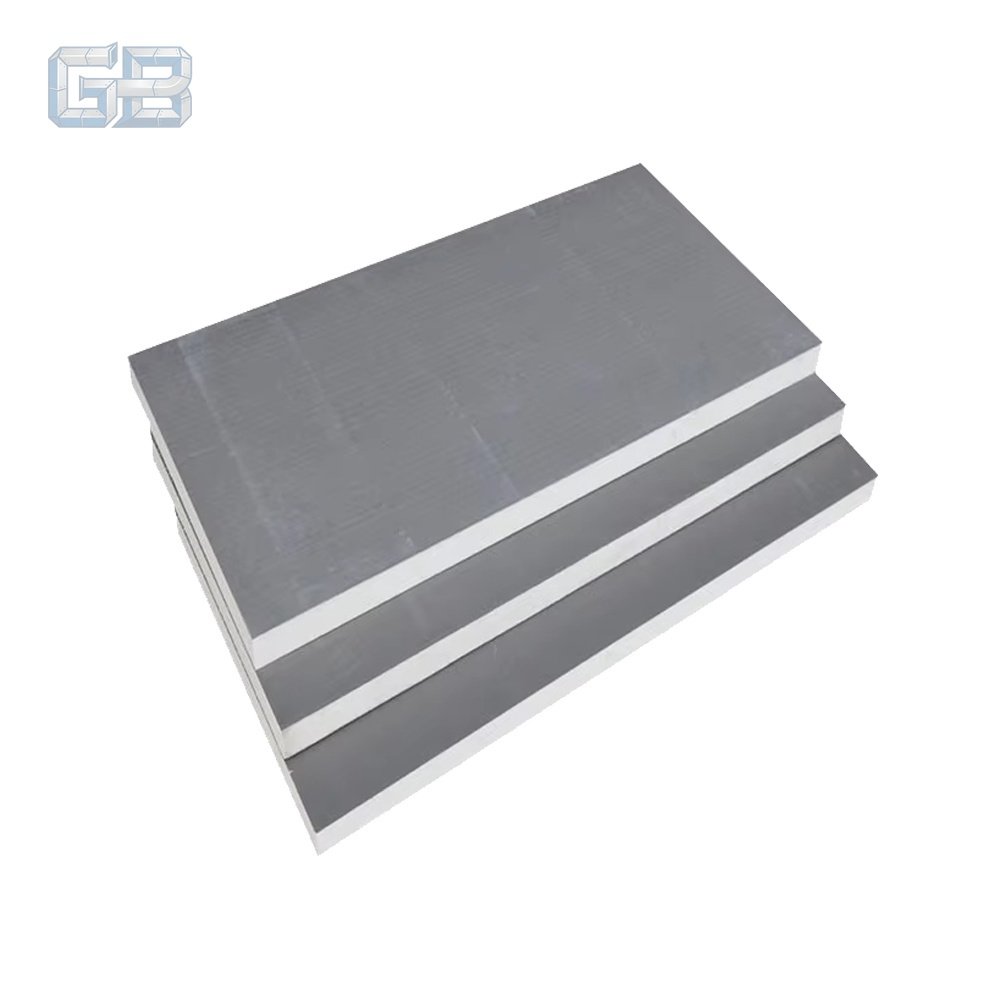

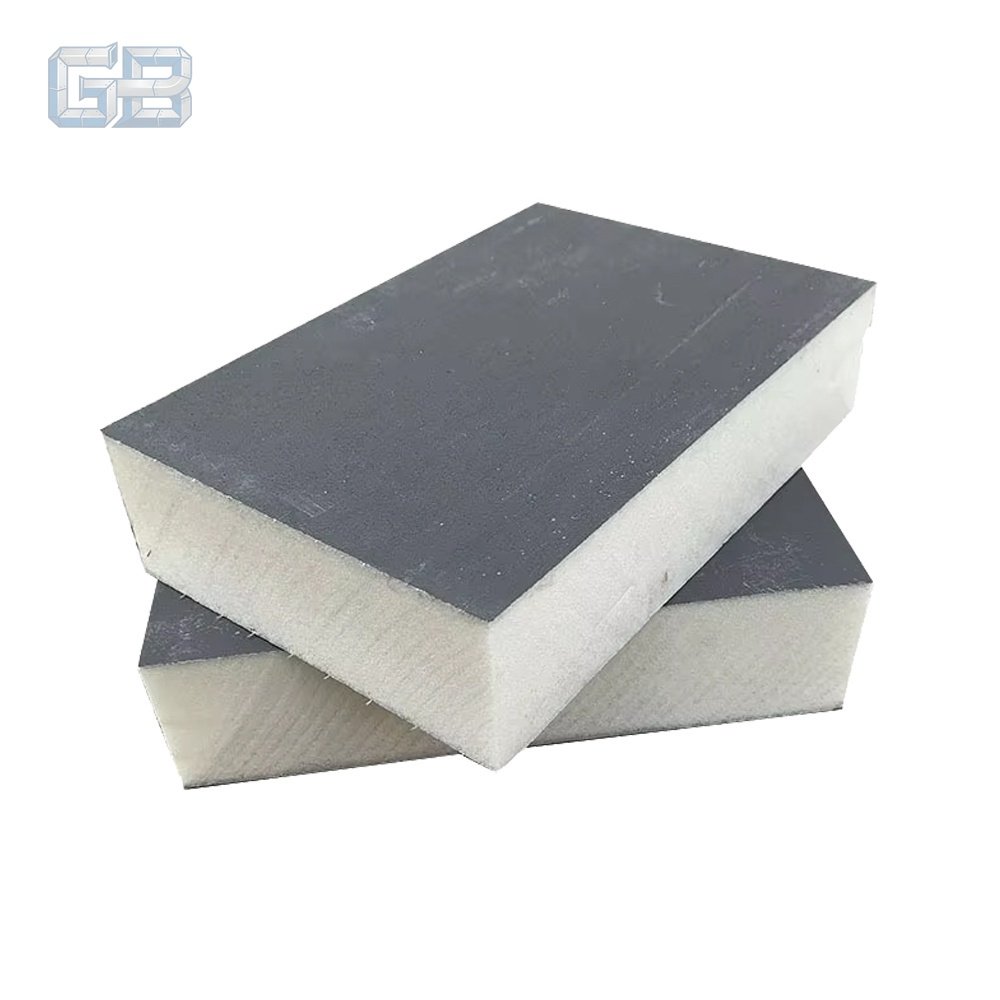

Fire Rated Polyurethane (PU) Exterior Wall Insulation Panels | High R-Value & Class A Fire Resistance
Fire Rated Polyurethane (PU) Exterior Wall Insulation Panels | High R-Value & Class A Fire Resistance
One-stop solution for energy-efficient, fire-safe and durable building envelopes. Reduce your construction time by 50% and energy costs by up to 40%.
? Class A Fire Rating:Complies with EN 13501-1, ASTM E84 standards
❄️ Superior Thermal Insulation:λ ≤ 0.024 W/(m·K), highest R-value per inch
⚡ Fast Installation:Interlocking design, no wet work, all-weather construction
♻️ Long Service Life:50+ years durability, moisture-proof, anti-corrosion
In Stock: Standard sizes ship within 7 days
MOQ: 100 sheets
Certification: CE, ISO 9001, RoHS

Get in touch

Email:info@gbduct.com
WhatsApp:+86 188 6166 0266

24/7 Online Support

Get Your Free Quote Now
Product Overview & Core Advantages

Core Performance Advantages



1. Exceptional Fire Performance

• Our Fire-Rated PU Insulation Panels are formulated with advanced flame-retardant additives

• Achieve Class A fire resistance certified to EN 13501-1:2018 and ASTM E84-22a standards

• Unlike traditional EPS or XPS insulation: no melting, no dripping, no toxic fume release when exposed to fire

• Provide critical life safety protection for building occupants and structural integrity

2. Industry-Leading Thermal Insulation

• Ultra-low thermal conductivity: as low as 0.022 W/(m·K) at 25°C

• Deliver the highest thermal efficiency among all rigid insulation materials

• Achieve required insulation performance with thinner panels

• Save valuable building floor space and reduce overall material costs

3. Fast & Efficient Installation System

• Patented interlocking tongue-and-groove design for perfect, airtight joints every time

• Panels are prefabricated to your exact project specifications

• Eliminate on-site cutting, waste and wet work

• A 2-person crew can install up to 500 m² per day

• Dramatically shorten construction schedules and cut labor costs by up to 50%

4. Long Service Life & Zero Maintenance

• Inherent closed-cell structure: 100% moisture-resistant and vapor-impermeable

• Prevent mold growth, water damage and structural deterioration

• Maintain full insulation performance for over 50 years with proper installation

• Require no regular maintenance throughout their entire service life

• Deliver superior long-term value compared to traditional insulation solutions

fire rated PU insulation panels-2
Technical Specification Sheet
Property Value Test Standard
Core Material Rigid Polyurethane Foam -
Density 40-45 kg/m³ ISO 845
Thermal Conductivity (25°C) ≤ 0.024 W/(m·K) ISO 8301
Fire Rating Class A (s1, d0) EN 13501-1
Compressive Strength ≥ 150 kPa ISO 844
Flexural Strength ≥ 200 kPa ISO 1209
Water Absorption ≤ 3% by volume ISO 2896
Water Vapor Permeability ≤ 0.0001 g/(m·s·Pa) ISO 12572
Operating Temperature Range -50°C to +120°C -
Standard Panel Thickness 50, 75, 100, 125, 150, 200 mm -
Standard Panel Width 1200 mm -
Standard Panel Length Up to 12000 mm (customizable) -
Typical Projects
  • Alibaba Group Global Headquarters
  • ByteDance Shanghai Headquarters
  • Nanjing University
  • Shanghai Grand Theatre
  • Embassy of the United Arab Emirates in Beijing
  • The Palace Museum
GB Duct Board – Factory Tour Video

Why Choose Us

Rich Industry Experience

With over 40 years of experience in the HVAC industry, we have completed more than 10,000 projects worldwide.

Strong Production Capacity

We own 10 modern automatic production lines with an annual output capacity of 300,000 square meters, guaranteeing stable quality and on-time delivery even for bulk orders.

Professional Technical Team

Our experienced engineering team provides one-stop customized solutions and full-process professional technical support for all your project demands.

Competitive Factory Price

As a direct manufacturer without middlemen markup, we offer genuine factory direct prices, helping you save up to 20% cost compared with trading companies.

Comprehensive After-sales Service

We provide complete after-sales support, including on-site installation guidance, professional technical training and efficient problem solving anytime.
